Description

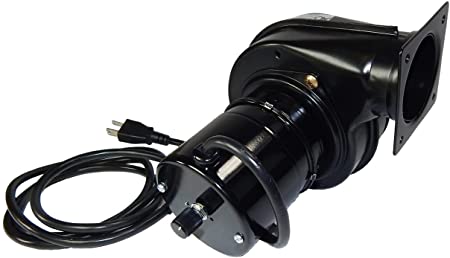

Elmira wood stove electric motor

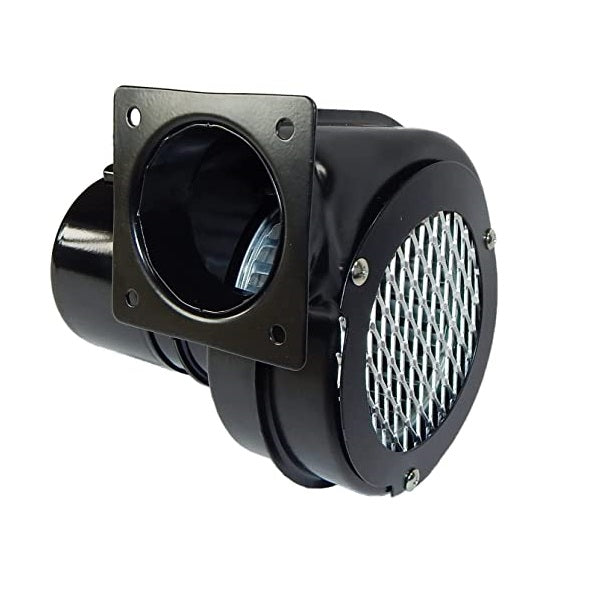

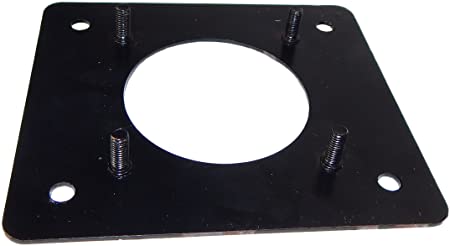

Screen guard on intake; Built in variable speed control on end of motor; 3" Square Outlet flange with bolt holes on 2.25" center (square pattern); Large adapter flange 4.5" x 4" with 4 studs on 2.25" center (square pattern-bolts to blower outlet) .3 Prong plug.
Part no. - R7-RB34
Replacement Motor by Rotom
HP-1/25
Volts- 120
Amps-0.60
Speed/Rpm - 1/2800
Rot. - CW
CFM - 73
Body- 6.6"
Frame - 3.3"
Bearing - Ball
